¶ Overview
Silk PLA is a modified version of standard PLA engineered to produce a naturally glossy, satin-like finish straight from the printer. This effect comes from reflective additives within the filament, which help create smooth light diffusion and a polished appearance.
While it prints much like regular PLA, achieving maximum gloss still depends on balancing temperature, speed, and extrusion consistency—small changes can shift results from matte to mirror-like.
¶
How Silk PLA Gloss Is Formed
Gloss develops when the molten filament spreads evenly and cools into a smooth, uniform layer. Balanced extrusion and cooling allow each layer to form a reflective surface. If the filament is too cool, the finish becomes matte; if too hot, surfaces may ripple or lose definition. Consistent outer-wall flow is essential for maintaining shine.
¶ Balancing Temperature and Speed
Printing Temperature
Silk PLA benefits from slightly higher temperatures than typical PLA for optimal surface flow:
- Start at 220–230 °C, adjusting in 5 °C steps.
- Higher temperatures increase smoothness and layer fusion. Matte or patchy areas usually indicate the need for a small increase.
- Excess stringing or softness suggests lowering the temperature by 3–5 °C.
Printing Speed
Smooth, slow deposition enhances gloss:
- Recommended outer-wall speed: 30–60 mm/s
- Inner walls can print faster (60–80 mm/s) without affecting appearance.
- Avoid speeds over 100 mm/s, as gloss and adhesion drop quickly.
Slower printing allows the filament to spread evenly before cooling—crucial for that silky reflection.
Layer Height and Surface Smoothness
- Use 0.12–0.20 mm layer heights for the best balance of detail and shine.
- Prioritize smooth, consistent outer-wall extrusion rather than simply adding more walls.
- Address any vibration, Z-wobble, or loose belts, as surface imperfections significantly reduce gloss.
¶
Model Selection
Model geometry influences how smoothly light travels across the surface:
- Curved, continuous shapes (vases, figurines, spheres) show the strongest gloss.
- Sharp edges, heavy overhangs, and abrupt transitions tend to scatter light and appear dull.
¶ Practical Workflow
- Load silk PLA and set the nozzle to ~220 °C.
- Heat the bed to ~55 °C, ensuring good leveling and Z-offset.

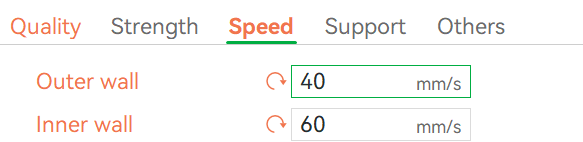

- Set outer-wall speed to ~40 mm/s; inner walls can run at 60–80 mm/s.

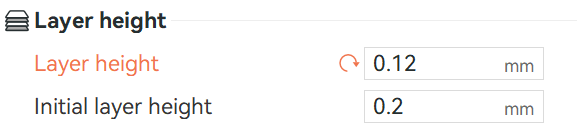

- Use a 0.12 mm layer height for a strong balance of definition and shine.

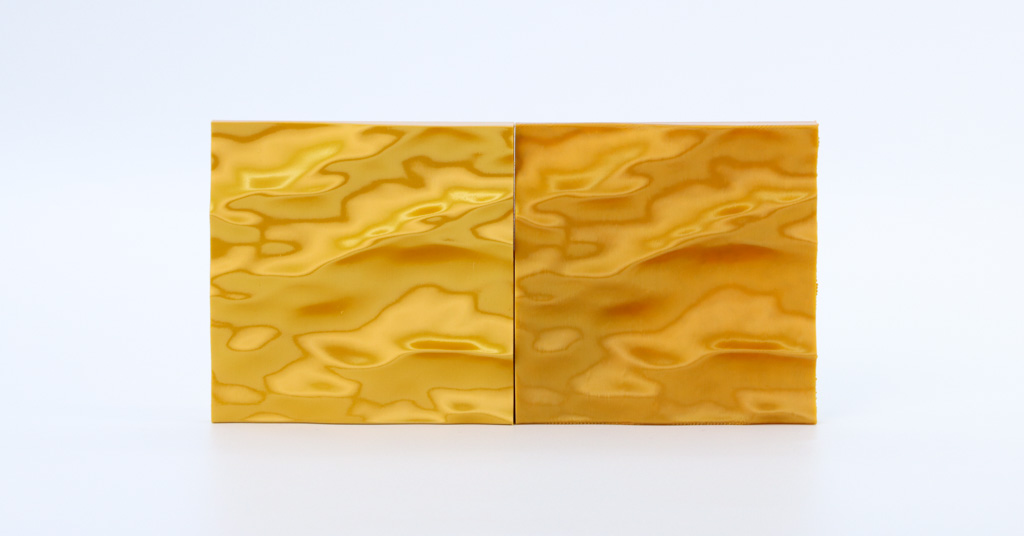

- Print a simple test piece to evaluate gloss under light before actual printing.
